Shapes of E major chord (CAGED system)

When we transpose each of the above basic CAGED chord shapes up and down the fret board, we get the following shapes of E major. Note that each chord shape plays only the three notes of the E major triad, viz E-G#-B and with E as the bass note.

1. E major in C major shape, i.e. E major in 4th position,
Played as - x76454:

2. E major in A major shape, i.e. E major in 7th position,
Played as - x79997:

3. E major in G major shape, i.e. E major in 9th position,
Played as - 12-11-9-9-9-12:

4. E major in the E major shape itself, which is in nut (open) position,
Played as - 022100:

5. E major in D major shape, i.e. E major in 2nd position,
Played as - xx2454:

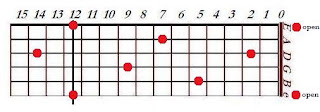

And here is a map of the E notes on the fret board to help you understand how they all fit together (the red notes everywhere are E notes and the black ones are G# or B):

Back to Shapes of individual CAGED major chords (CAGED system)
